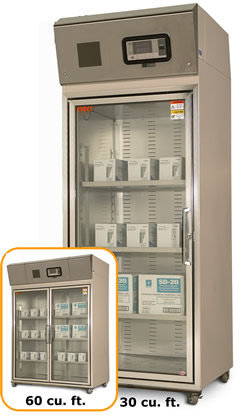

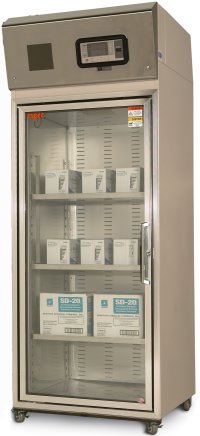

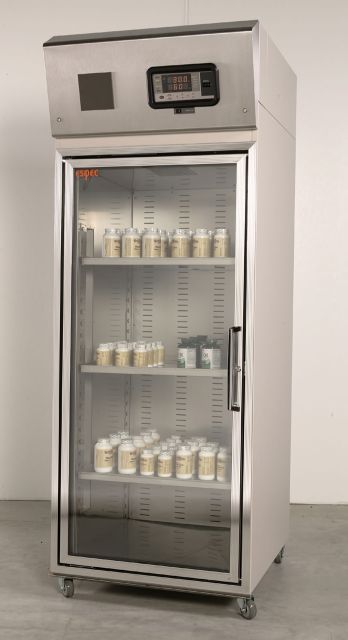

ZoneOne series stability chambers

Designed for ICH Q1A stability test requirements

The ZoneOne temperature/humidity chamber provides outstanding stability testing performance for manufacturers of pharmaceuticals, biologics, food, and personal care products. This chamber is easy to use, durable, and comes with the full range of features needed to support a wide range of stability test requirements.

STANDARD FEATURES

• Performance meets ICH Q1A guidelines
• Controller can be set in constant or programmed mode (9 steps / 99 loops)
• Integrated timer for automatic start/stop
• Refrigeration configured for continuous frost-free operation
• Balanced temperature/humidity control method for better accuracy and increased reliability
• Horizontal airflow (350 cfm) for uniform sample exposure
• Full-view window, heated to minimize condensation
• Door lock with key

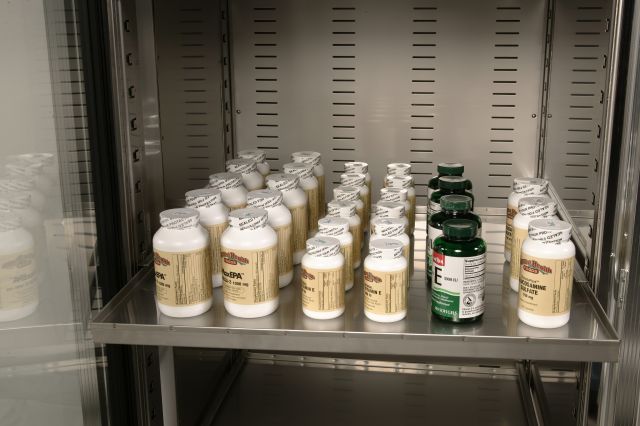

• Three adjustable solid shelves included
• Casters
• Flush installation to wall/sides



	Temperature range	Humidity range	Interior volume	Interior dimensions (W x D x H)
EZO30-EA	10 to 65°C (50 to 150°F)	20 to 90%RH (see chart)	790 L (28 cu. ft.)	70 x 71 x 161 cm (27.8"x26.9"x63.5")
EZO60-EA			1,580 L (56 cu. ft.)	140 x 71 x 161 cm (55"x26.9"x63.5")

Humidity range

Utilities required: 208V/1 phase; purified water, gravity drain

Options available:

• GP-IB computer interface (LabVIEW drivers available free)
• RS-232C computer interface (Remote control software available free)
• Paperless recorder with LCD display, CompactFlash storage, and Ethernet connection
  (CFR21 Part 11 compliant version available)
• Strip chart or circular chart recorder
• Additional shelves (three are included)
• Water filter cartridge system
• Water supply tank
• Cable ports for running in wires: 25mm or 50mm diameter
• Interior light
• Stainless steel exterior
• Power cord
• Solid or right-hand hinged door
